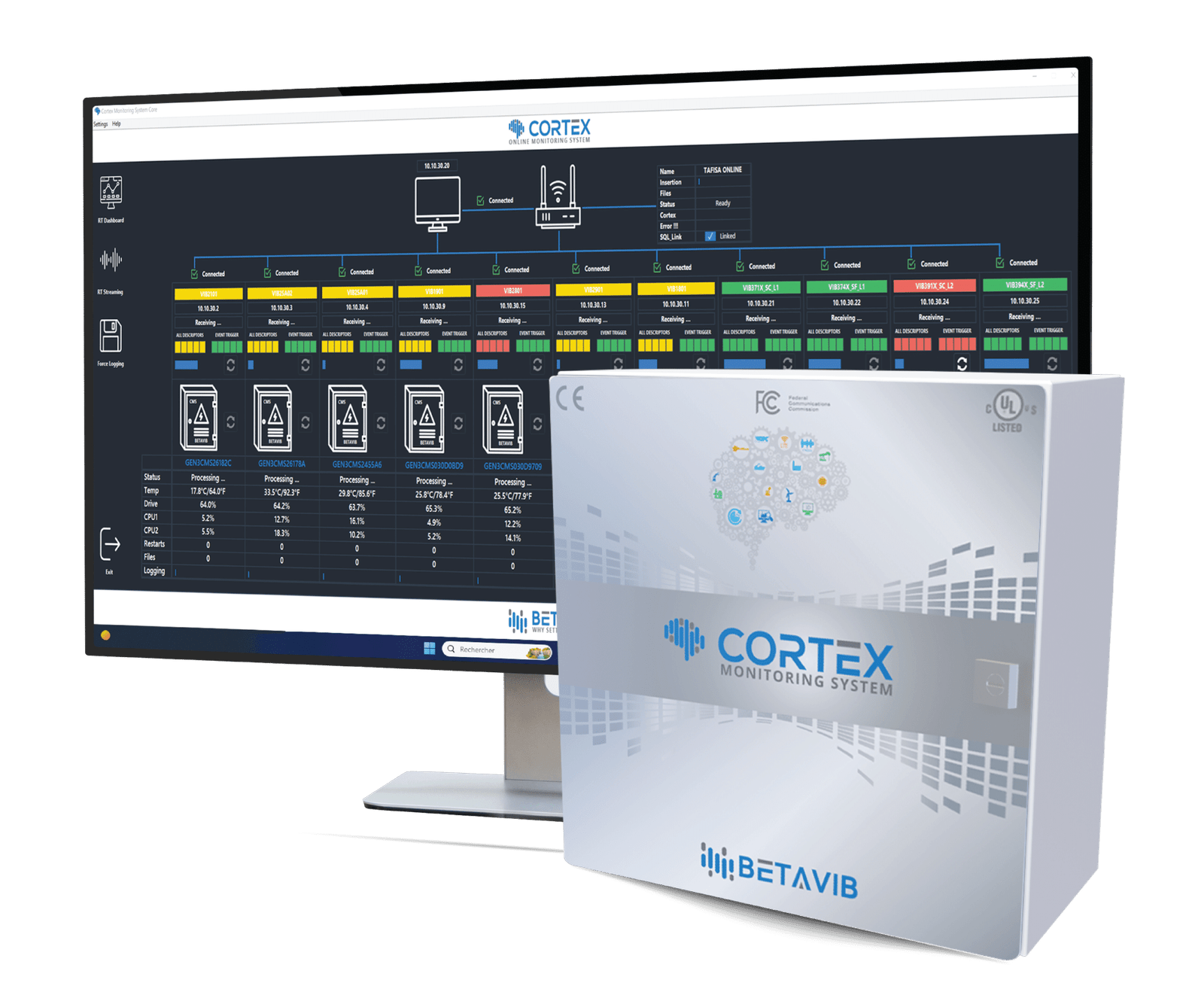

Cortex

POWERFUL CORE

SIMPLE INTERACTION

WELCOME TO OUR INNOVATIVE SOLUTION:

Overview

Discover BETAVIB’s Cortex Online Monitoring Solution, a transformative approach to enhancing the reliability of your critical assets. Our solution combines innovative vibration-based technologies with a focus on Reliability 4.0 to provide real-time insights that drive proactive maintenance strategies. By integrating seamlessly into your existing systems, Cortex helps maximize uptime, reduce unplanned downtime, and optimize asset performance. We don’t compare ourselves to competitors; instead, we compare ourselves to our past achievements and constantly strive to evolve. This commitment to progress is reflected in the migration of our Cortex system from Gen 04 to Gen 05. With BETAVIB as your trusted partner, you can elevate operational efficiency, improve productivity, and ensure your assets operate at their peak every day. Let us help you unlock the full potential of your operations.

+ 1 %
Processor Power
+ 1 %
DRAM Capacity
+ 1 %
More Cells & DSPs

Features To Discover

ARCHITECTURE CMC

Fully Cabled, fully wireless or cabled/wireless.

ONBOARD STORAGE

Autonomous analysis and data logging to pr event network failures Maximum autonomy with onboard decision.

FLEXIBLE & INNOVATIVE

Over 50 input/Output Modules to measure and interact with all parameters. Online And Offline Measurements share the same Database Structure.

ONBOARD DECISION

Machine Shut down on Alar m crossing. Sound or light war ning on exception events.

REMOTE ACCESS

Mail notification on alar m crossing and accessible data through Web services from any connected device

SCALABLE AND RUGGED

CMS will fit your needs in terms of channels count and multiple sensors. CMS is certified Class1, Div2 ATEX and has ex- tended temperature range.

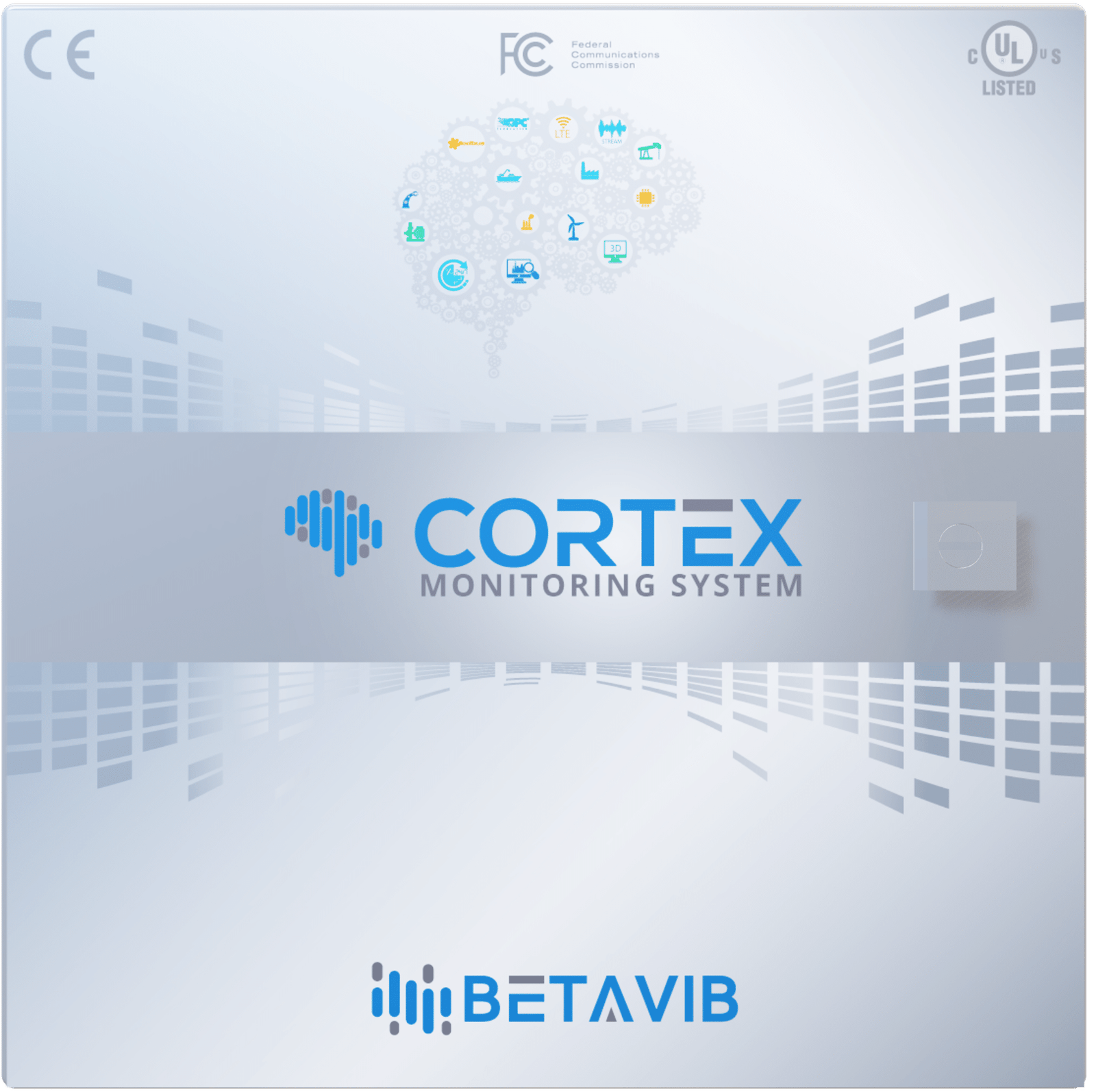

Closer Look

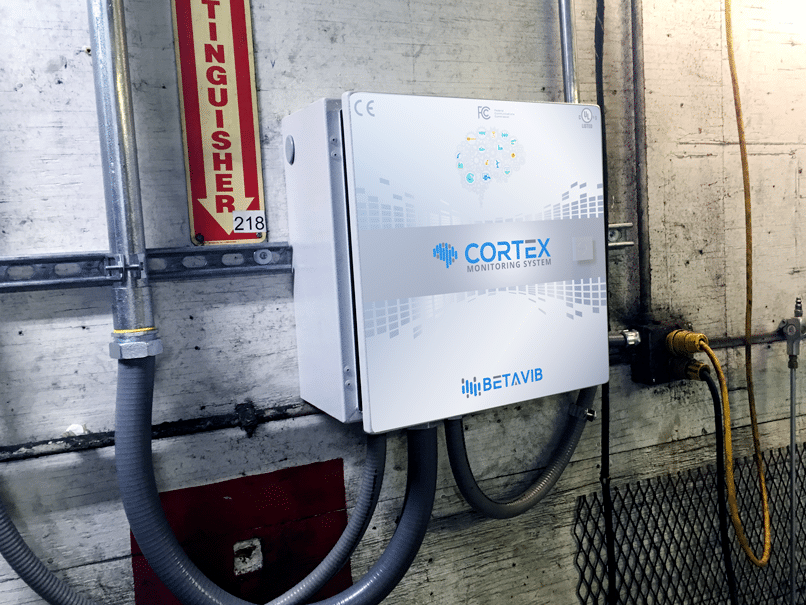

CMS is certified Class1,Div2 ATEX. and has extended temperature range -40°F to 158°F, Integrated fan system, high-end technology hardware is well protected in a rugged wall mounted enclosure (16*16*8.3 in) for maximum use of space and ease of installation. NEMA protection ratings are ensured through a secure locking system. Main CMS components are plate mounted for maximum protection during shipping.

Safety Standards

IEC 61010-1, EN 61010-1
UL 61010-1, CSA 61010-1
EN 60079-0:2012, EN 60079-15:2010
IEC 60079-0: Ed 6, IEC 60079-15; Ed 4
UL 60079-0; Ed 5, UL 60079-15; Ed 3
CSA 60079-0:2011, CSA 60079-15:2012

Electromagnetic Compatibility

EN 61326-1 (IEC 61326-1): Class A emissions
EN 55011 (CISPR 11): Group 1, Class A emissions
EN 55022 (CISPR 22): Class A emissions
EN 55024 (CISPR 24): Immunity
AS/NZS CISPR 11: Group 1, Class A emissions
AS/NZS CISPR 22: Class A emissions
FCC 47 CFR Part 158: Class A emissions
ICES-001: Class A emissions

SPEC SHEET

Latest Updates

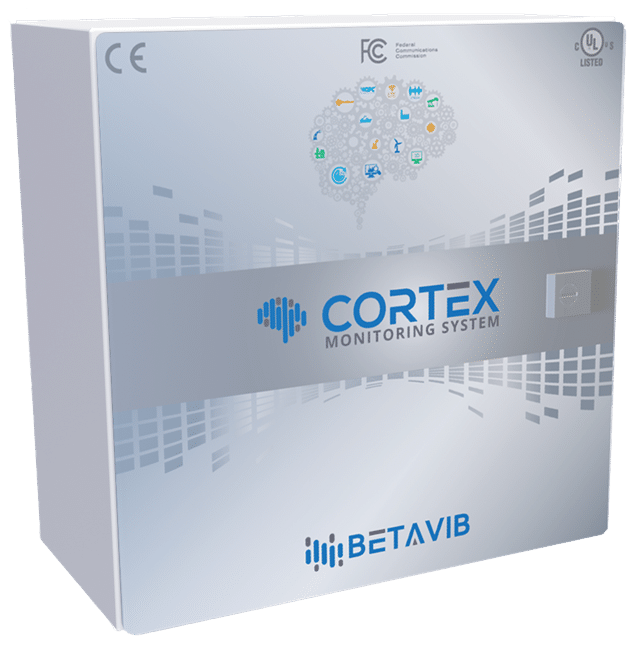

RUGGED & CERTIFIED
CMS is certified Class1,Div2 ATEX. and has extended temperature range -40°F to 158°F, Integrated fan system, high-end technology hardware is well protected in a rugged wall mounted enclosure (16*16*8.3 in) for maximum use of space and ease of installation. NEMA protection ratings are ensured through a secure locking system. Main CMS components are plate mounted for maximum protection during shipping.
TRIGGERS AND ADAPTIVE ALGORITHMS
RMS threshold feature is used as trigger in sensorless cases or when process parameters are not available and can be automatically enabled in faulty sensor scenarios to track the operating state of the monitored machine ensuring continuous monitoring and maximum autonomy. Trigger and operating condition checking tasks are very fast (milliseconds) allowing CMS to monitor accurately assets with short running cycles. Embedded adaptive algorithms makes CMS suitable to monitor even variable state and complex machinery and to respond in real time to changes during transient conditions. No event will be missed !
OPEN ARCHITECTURE
CMS is designed with an open architecture to fully interact with third party PLCs or sensors making its integration within a distributed control systems as smooth as possible. The network architecture can be fully cabled, fully wireless or both combined providing flexible solution, ease of installation and smart distribution of CMS controllers within factory departments . Cellular network combined to secured VPN can be also used to access CMS controllers in some cases where the monitored machine is constantly moving such as boat gearboxes, … Overall values per point as well as operating conditions data can be shared with third party hardware or/and software using Modbus, OPC and data socket protocols.

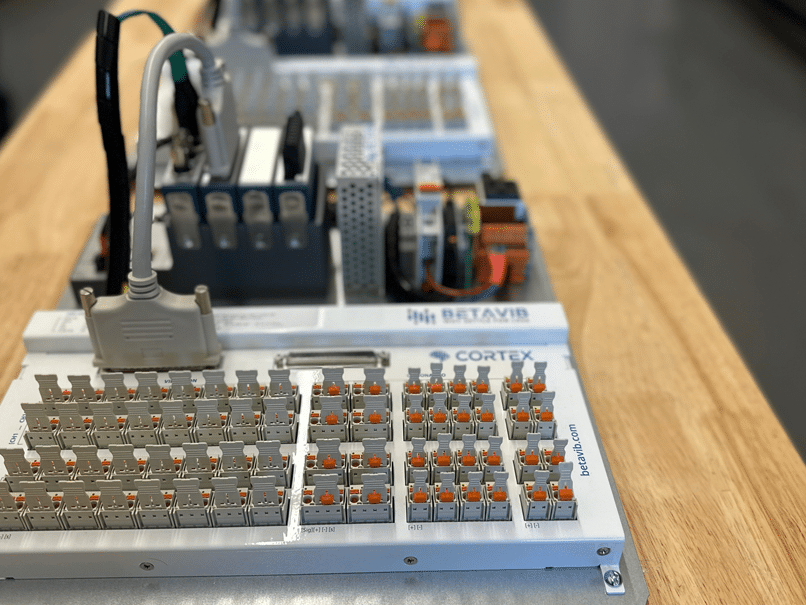

FLEXIBILITY AND MODULARITY
Over 50 input/output modules to measure and interact with all parameters and relevant inputs (vibration, voltage, current, proximity probes, pressure and temperature) in various configurations. Standard version comes in 32 channels or 16 (easy upgradable), designed to monitor flawlessly up to 8 or 4 machines respectively thanks to multiple easy configurable triggers and real time adaptive processing. CMS can be customized so it can fit your needs in terms of channels count and sensors complexity.
EMBEDDED PROCESSING
Thanks to its powerful dual-core ARM processor, CMS can process up to 5 vibration indicators (RMS, Peak, CF, KU, Overall Velocity) per channel as well as 6 power in bands, up to 102.4 KHz (Fmax = 40 KHz) sampling frequency lowpass/highpass/in band Filtering, FFT spectra and much more. Real time waveform per point can be streamed continuously to the Cortex Core (HMI) for more powerful analysis.

What You Get With Our Cortex

Our Cortex system is available in three configurations, combining both hardware and software to meet diverse operational needs. The hardware includes a high-performance monitoring platform that is designed to operate in rugged environments. Cortex supports 16 or 32 channels, with the option to expand functionality. It is equipped with a dual-output accelerometer for vibration and temperature, as well as four tachometers to monitor up to four different machines simultaneously. Additionally, it offers 4 digital I/O channels and the ability to replace temperature inputs with current inputs, based on your specific needs. On the software side, we offer three distinct strategies, starting with Cortex Knight. This basic workstation is designed for essential condition monitoring and includes key features:

CORTEX KNIGHT

SPEC SHEET

  • 16-32 Channel Support
  • Smart Machine Monitoring
  • Extended Bearing Database
  • Standard & Custom Report Generation
  • Basic & Advanced Signal Processing Tools
  • Long-Term Waveform Collection
  • Automated Fault Frequency Detection
  • Automated Transmission Monitoring
  • Real-Time Monitoring & Customizable Analysis

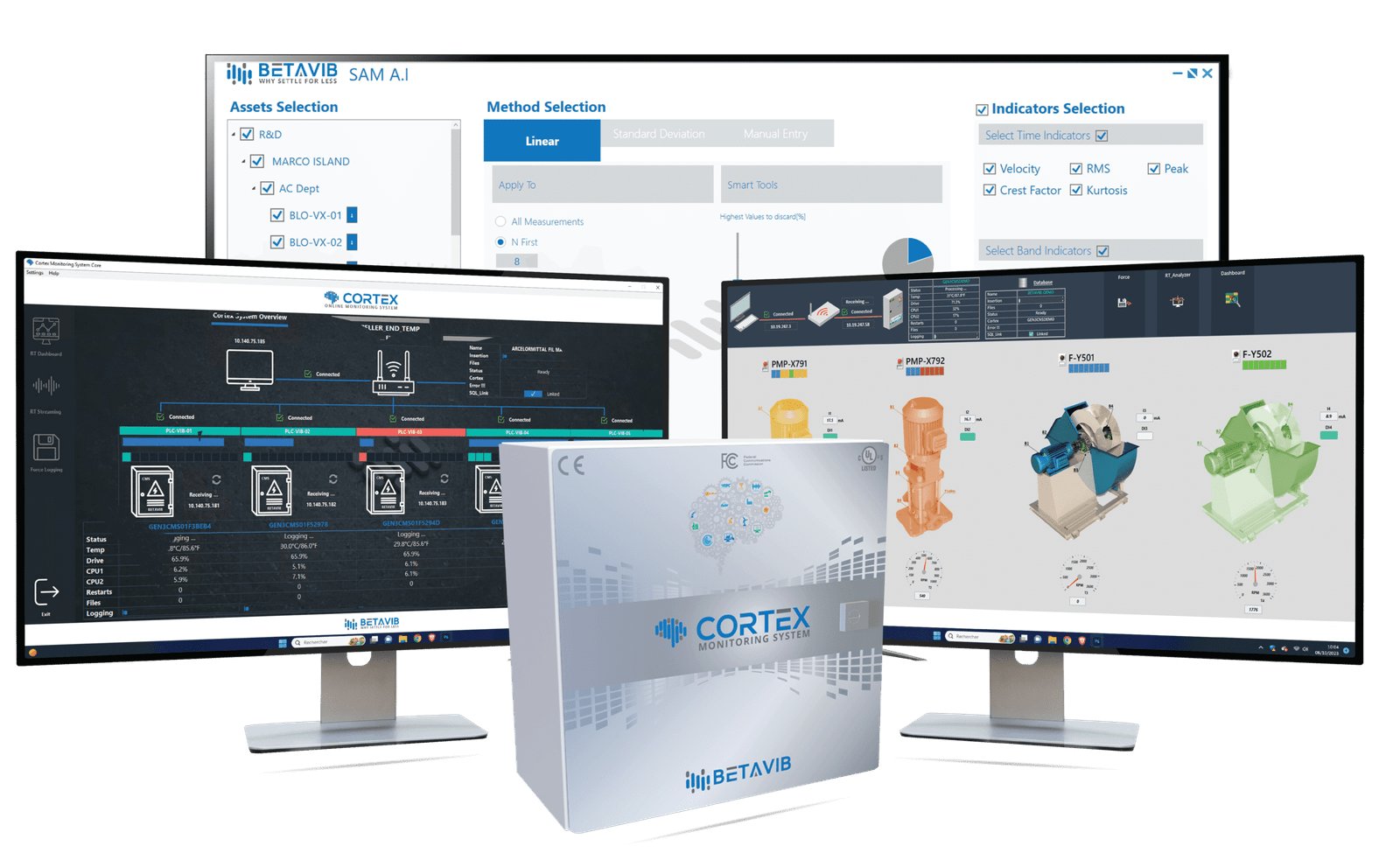

CORTEX ROOK

SPEC SHEET

  • 16-32 Channel Support
  • Smart Machine Monitoring
  • Extended Bearing Database
  • Standard & Custom Report Generation
  • Basic Signal Processing Tools
  • Long-Term Waveform Collection
  • Automated Fault Frequency Detection
  • Automated Transmission Monitoring
  • Real-Time Monitoring & Customizable Analysis
  • Anomaly Report Generation
  • Automated Database Definition
  • S.A.M : Smart Alarm Module
  • History Reprocessing
  • Advanced Reporting Capabilities

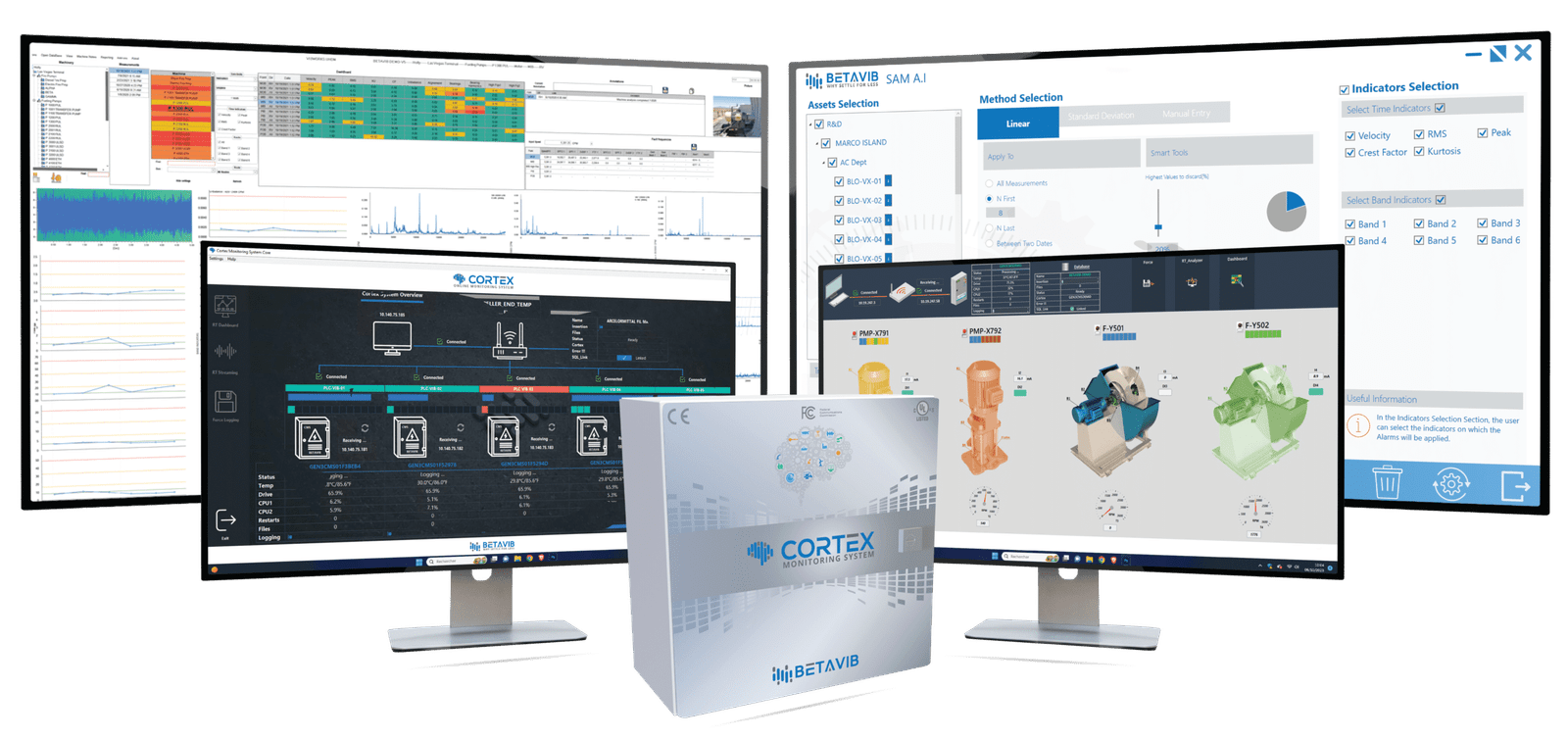

CORTEX KING

SPEC SHEET

  • 16-32 Channel Support
  • Smart Machine Monitoring
  • Extended Bearing Database
  • Standard & Custom Report Generation
  • Basic Signal Processing Tools
  • Long-Term Waveform Collection
  • Automated Fault Frequency Detection
  • Automated Transmission Monitoring
  • Real-Time Monitoring & Customizable Analysis
  • Anomaly Report Generation
  • Automated Database Definition
  • S.A.M : Smart Alarm Module
  • History Reprocessing
  • Advanced Reporting Capabilities
  • U.H.D.M Ultra HD Monitoring
  • Interactive Color coded DashBoard
  • Direct Bluetooth audio from sensor

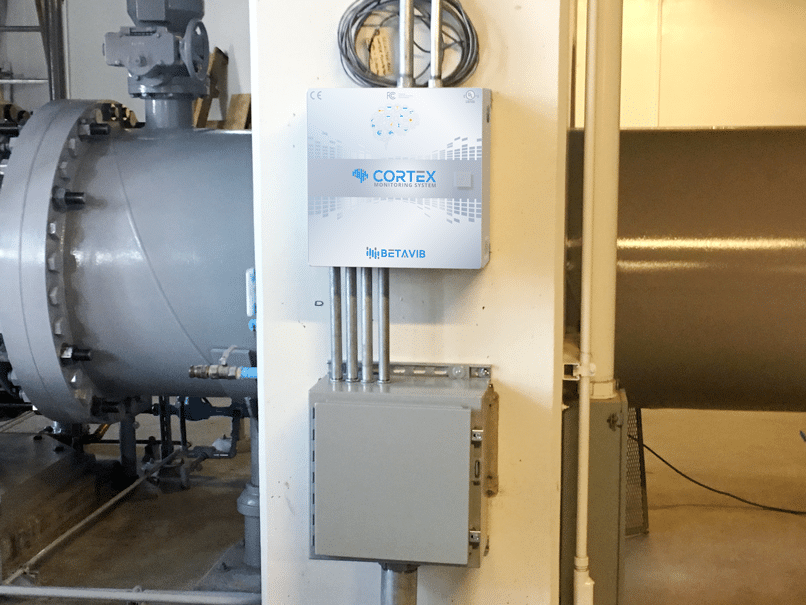

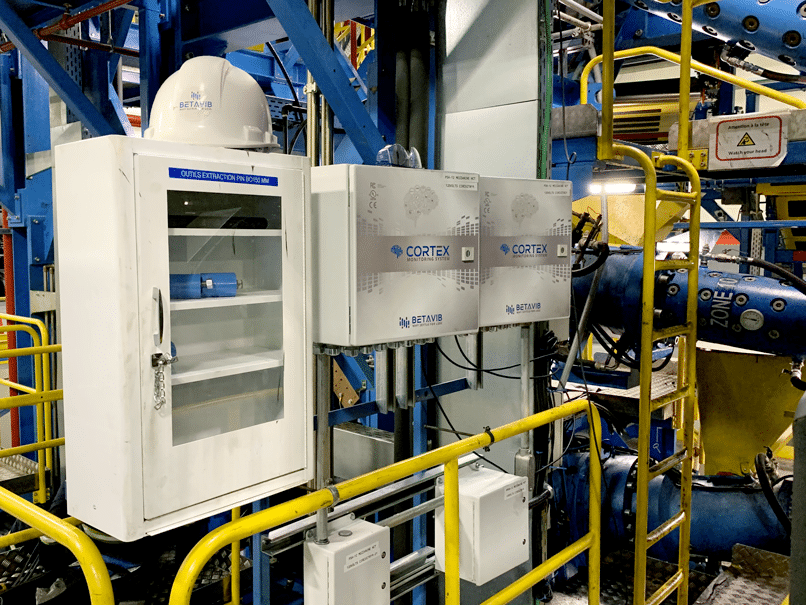

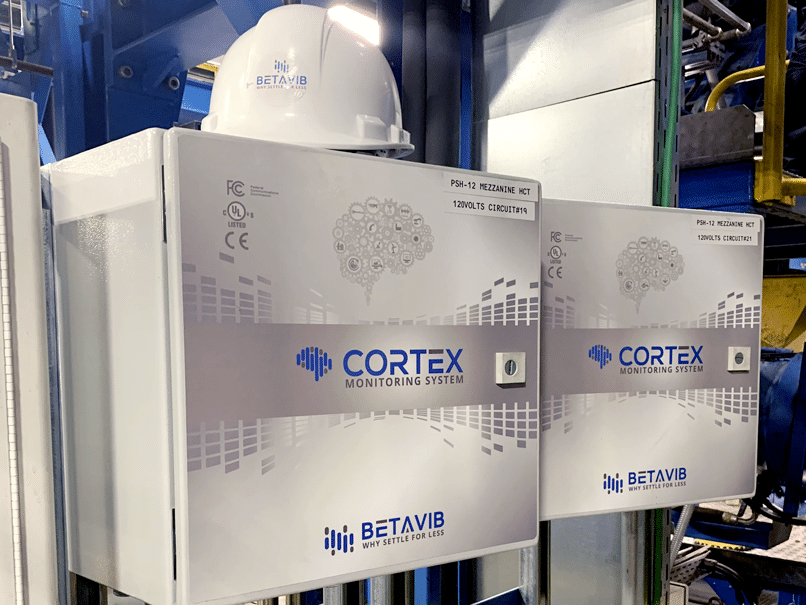

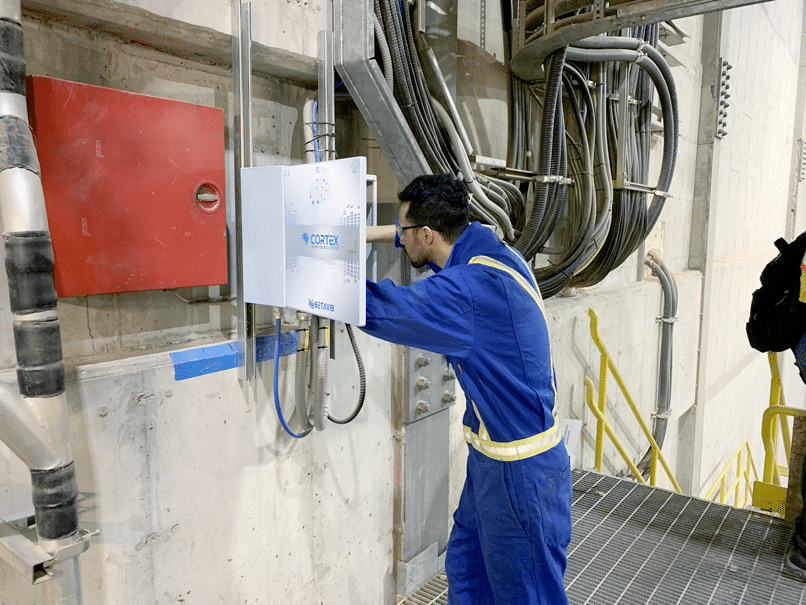

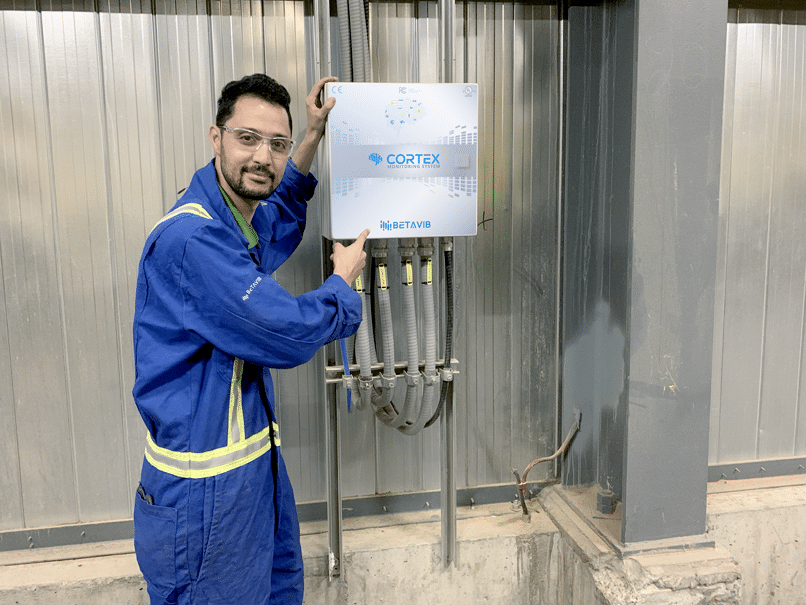

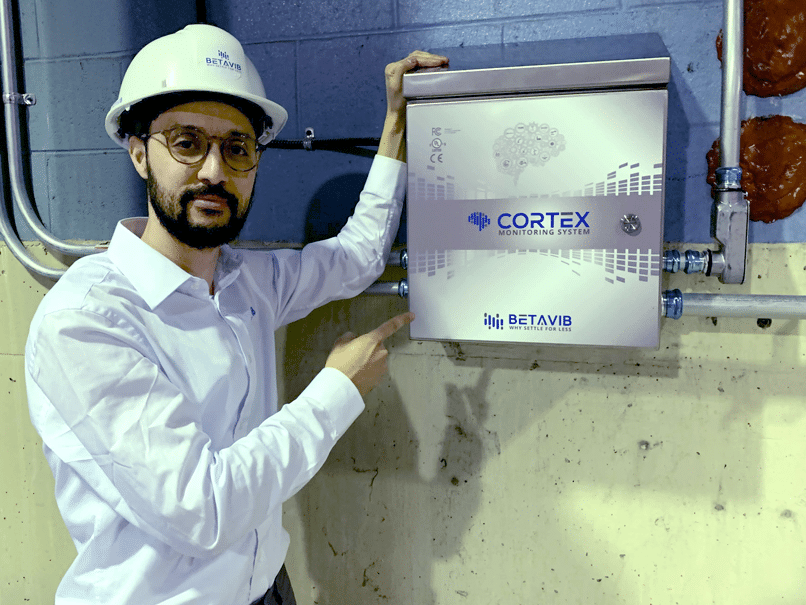

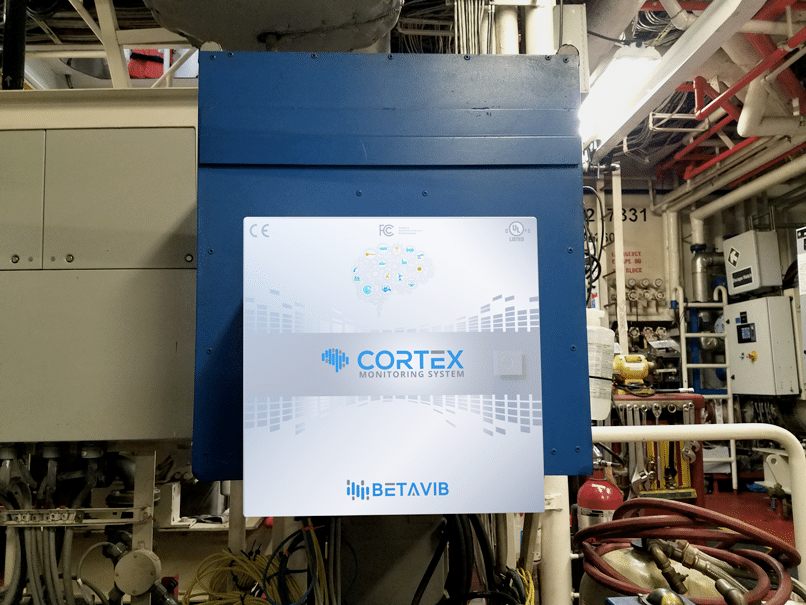

Gallery
